0160FR
Adhesive Back DPC Membrane
Class B - EN 13501-1
A fire-classified cavity barrier designed to meet the most demanding applications. As an industry-first, this remarkable DPC membrane achieves a minimum fire classification of Class B-s3, d0, setting a new standard in safety and reliability. Read more
-
Class B
-
EN 1928 - EN 14909
Downloads
Product Description

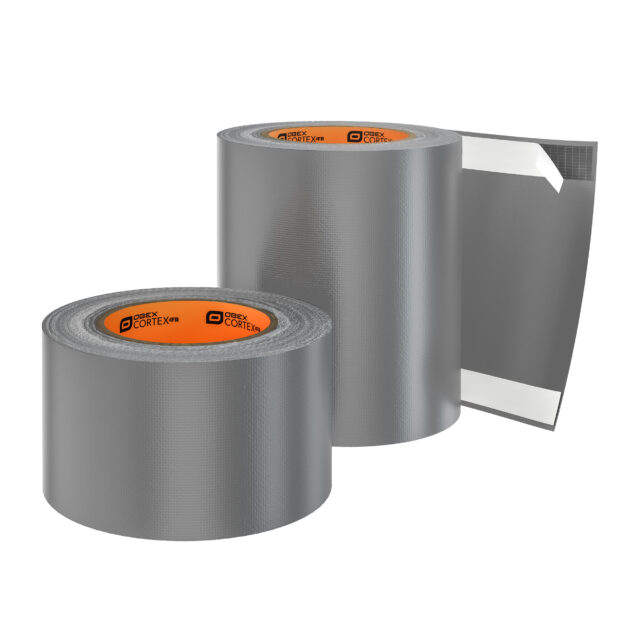

OBEX CORTEX 0160FR DPC Membrane is a Class B fire-classified cavity barrier designed to meet the most demanding applications. As an industry-first, this remarkable DPC membrane achieves a minimum fire classification of Class B-s3, d0, setting a new standard in safety and reliability.
The membrane has a very strong self-adhesive backing, making it quick and easy to install. It is ideal for external wall applications such as cavity barriers, where a DPC separation layer is required.
Product Specs
Width
50-500mm
Length
20m
Thickness
0.5mm
Technical Specs
Harmonised Standard
EN 14909
Fire Classification | EN 13501-1
B-s3,d0
Watertightness | EN 1928
Pass - 2kPa for 24hrs
Air tightness | EN 12114
<0.1m³ net leakage
Tensile Strength | EN 12311-2
MD 2490 N/50mm, CD 2079 N/50mm
Resistance to tearing (nail shank) | EN 12310-1
MD 429 N, CD 452 N
Water vapour permeability (μ)
23,726 μ
Equivalent air layer thickness (Sd value) | EN 1931
12m
Vapour resistance | EN 1931
59 MNs/g
Elongation at break % | 12311-2
MD 23%, CD 31%
Cold Temperature Flexibility | EN 495 - 5
-40°C – no cracks
Calcium sulphate durability | EN 1847
Pass
UV & heat ageing | EN 1296
Pass (watertightness, tensile, tear strength
Product Order Codes
| Product Codes | Product Description | Width | Length | Box Quantity |
|---|---|---|---|---|
| 20.0160.001 | OBEX CORTEX 0160FR Adhesive Backed DPC Membrane - Class B-s3,d9 | 50mm | 20m | 1 |
| 20.0160.002 | OBEX CORTEX 0160FR Adhesive Backed DPC Membrane - Class B-s3,d9 | 100mm | 20m | 1 |
| 20.0160.003 | OBEX CORTEX 0160FR Adhesive Backed DPC Membrane - Class B-s3,d9 | 150mm | 20m | 1 |
| 20.0160.004 | OBEX CORTEX 0160FR Adhesive Backed DPC Membrane - Class B-s3,d9 | 200mm | 20m | 1 |
| 20.0160.005 | OBEX CORTEX 0160FR Adhesive Backed DPC Membrane - Class B-s3,d9 | 250mm | 20m | 1 |
| 20.0160.006 | OBEX CORTEX 0160FR Adhesive Backed DPC Membrane - Class B-s3,d9 | 300mm | 20m | 1 |
| 20.0160.007 | OBEX CORTEX 0160FR Adhesive Backed DPC Membrane - Class B-s3,d9 | 350mm | 20m | 1 |
| 20.0160.008 | OBEX CORTEX 0160FR Adhesive Backed DPC Membrane - Class B-s3,d9 | 400mm | 20m | 1 |
| 20.0160.009 | OBEX CORTEX 0160FR Adhesive Backed DPC Membrane - Class B-s3,d9 | 450mm | 20m | 1 |
| 20.0160.010 | OBEX CORTEX 0160FR Adhesive Backed DPC Membrane - Class B-s3,d9 | 500mm | 20m | 1 |
