0814FR

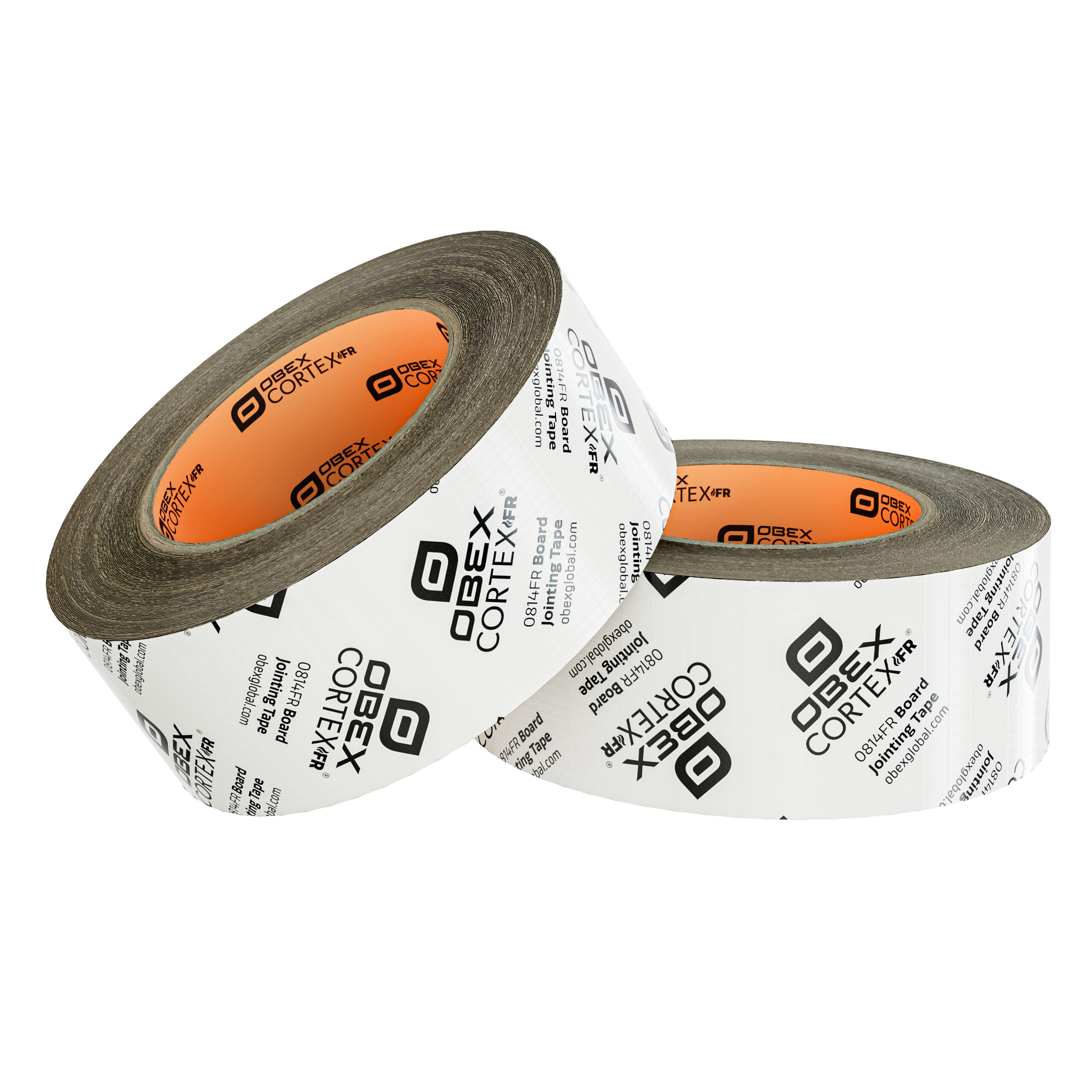

Board Jointing Tape
A single-sided adhesive tape used for sealing the joints between sheathing boards. This tape has been specifically developed for use on surfaces such as Cement board, Calcium Silicate board, Gypsum board and many other surfaces. It is reinforced with scrim to ensure maximum strength and durability across the lifetime of the bond. Read more
-
3rd Party Certified
-
EI60 Fire Test Component
Downloads
Product Description
OBEX CORTEX 0814FR Board Jointing Tape is a single-sided adhesive tape used for sealing the joints between sheathing boards. This tape has been specifically developed for use on surfaces such as Cement board, Calcium Silicate board, Gypsum board and many other surfaces. It is reinforced with scrim to ensure maximum strength and durability across the lifetime of the bond.
OBEX CORTEX 0814FR is highly resistant to both high and low temperature extremes, as well as exposure to UV and remains flexible across the lifetime of the product. The unique acrylic dispersion adhesive maintains a high level of performance during exposure to moisture, increasing the lifetime of the seal, especially for construction materials subject to expansion and contraction.
Typical Uses

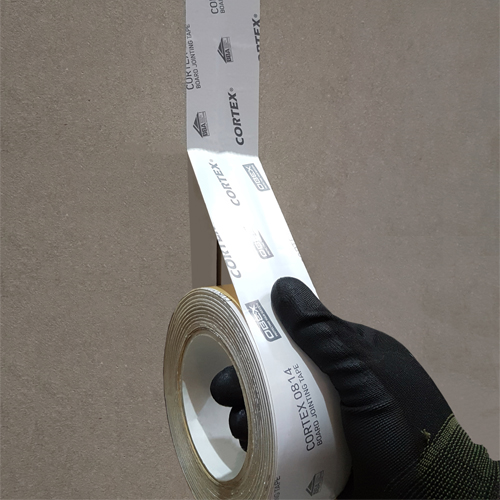

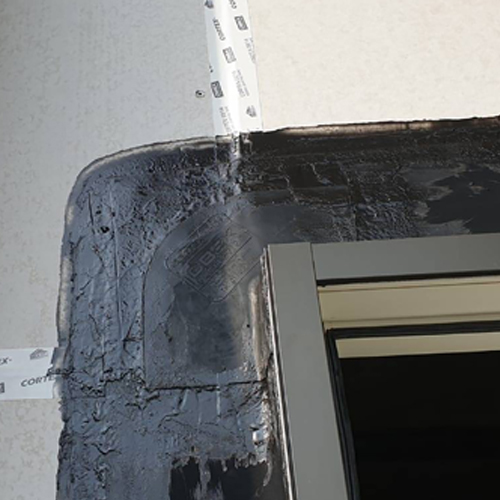

- Taping joints on sheathing board installations
Product Specs
Standard Widths
50mm, 60mm, 75mm, 100mm & 150mm wide
Length
25m
Application Temperature
+5°C recommended
Technical Specs
Adhesive carrier
LDPEco film, white/black, reinforced with scrim
Adhesive system
Acrylic dispersion
Release liner
Silicone-coated paper, brown
Thickness, without liner | DIN EN 1942
0.30 - 0.33mm
Peel adhesion | DIN EN 1939**
≥ 35 N/25mm
Elongation | DIN EN 14410
≥ 25 N/25mm; 300%
Processing temperature
+5°C recommended
Processable from -10°C
IS0306/B50
Temperature Resistance
-30 to +100°C
Tack
Excellent
Condensation water resistance
High
Ageing resistance
2 Years UV Resistance (exposed)
Reaction to fire | DIN EN 13501-1
Class E
Colours
Black or white
Product Order Codes
| Product Codes | Product Description | Width | Length | Box Quantity |
|---|---|---|---|---|
| 10.0814.003 | OBEX CORTEX 0814FR Board Jointing Tape | 50mm | 25m | 24 rolls |
| 10.0814.005 | OBEX CORTEX 0814FR Board Jointing Tape | 60mm | 25m | 20 rolls |
| 10.0814.015 | OBEX CORTEX 0814FR Board Jointing Tape | 150mm | 25m | 8 rolls |
| 10.0814.004 | OBEX CORTEX 0814FR Board Jointing Tape - Black | 50mm | 25m | 24 rolls |
| 10.0814.006 | OBEX CORTEX 0814FR Board Jointing Tape - Black | 60mm | 25m | 20 rolls |
| 10.0814.016 | OBEX CORTEX 0814FR Board Jointing Tape - Black | 150mm | 25m | 8 rolls |
