EPDM Membrane With Gasket
Class E - EN 13501-1
OBEX CORTEX EPDM Membrane With Gasket is a fully flexible membrane used to create weather and airtight seals around openings such as windows, doors and curtain walling on non-relevant buildings.
This membrane is manufactured with a gasket on one edge which enables the membrane to be securely attached directly into the channel of the window frame, or into the OBEX CORTEX Gasket Carrier.
Our range of gaskets are suitable for most widely used window systems such as Schuco, Reynaers, Aluprof, Senior, and many others.
Typical Uses
- Creating a weather and airtight seal around openings on non-relevant buildings
Request Technical Data
- 3rd Party Certified
- EN 1928 - EN 13984
Product Description
OBEX CORTEX EPDM Membrane With Gasket is a fully flexible membrane used to create weather and airtight seals around openings such as windows, doors and curtain walling on non-relevant buildings.
This membrane is manufactured with a gasket on one edge which enables the membrane to be securely attached directly into the channel of the window frame, or into the OBEX CORTEX Gasket Carrier.
Our range of gaskets are suitable for most widely used window systems such as Schuco, Reynaers, Aluprof, Senior, and many others.
Typical Uses
- Creating a weather and airtight seal around openings on non-relevant buildings
Request Technical Data
Product Specs
Widths
50mm - 1000mm
Length
20m
Thicknesses
0.6mm, 0.75mm, 1.0mm, 1.2mm, 1.5mm
Technical Specs
Fire Classification | EN 13501-1
E
Watertightness | EN 1928
Pass – 2 kPa for 24 hours
Water Vapour Permeability | EN 1931
50,000µ
Tensile Strength | EN 12311-2
≥7MPa
Air Tightness | EN 12114
<0.1m³
3rd Party Approved
BBA Approval – No. 17/5396
Product Order Codes
Product Codes | Product Description | Width | Thickness | Gasket Type | Length | Pack Qty |
---|---|---|---|---|---|---|
OBEX CORTEX EPDM Membrane Inc 0761 Gasket | ||||||
10.0750.701 | OBEX CORTEX 0750 EPDM Membrane Inc 0761 Gasket | 100mm | 0.75mm | 0761 | 20m | 1 |
10.0750.702 | OBEX CORTEX 0750 EPDM Membrane Inc 0761 Gasket | 150mm | 0.75mm | 0761 | 20m | 1 |
10.0750.704 | OBEX CORTEX 0750 EPDM Membrane Inc 0761 Gasket | 200mm | 0.75mm | 0761 | 20m | 1 |
10.0750.705 | OBEX CORTEX 0750 EPDM Membrane Inc 0761 Gasket | 250mm | 0.75mm | 0761 | 20m | 1 |
10.0750.706 | OBEX CORTEX 0750 EPDM Membrane Inc 0761 Gasket | 300mm | 0.75mm | 0761 | 20m | 1 |
10.0750.707 | OBEX CORTEX 0750 EPDM Membrane Inc 0761 Gasket | 350mm | 0.75mm | 0761 | 20m | 1 |
10.0750.708 | OBEX CORTEX 0750 EPDM Membrane Inc 0761 Gasket | 400mm | 0.75mm | 0761 | 20m | 1 |
10.0750.709 | OBEX CORTEX 0750 EPDM Membrane Inc 0761 Gasket | 450mm | 0.75mm | 0761 | 20m | 1 |
10.0750.710 | OBEX CORTEX 0750 EPDM Membrane Inc 0761 Gasket | 500mm | 0.75mm | 0761 | 20m | 1 |
10.0750.712 | OBEX CORTEX 0750 EPDM Membrane Inc 0761 Gasket | 600mm | 0.75mm | 0761 | 20m | 1 |
10.0750.714 | OBEX CORTEX 0750 EPDM Membrane Inc 0761 Gasket | 700mm | 0.75mm | 0761 | 20m | 1 |
OBEX CORTEX EPDM Membrane Inc 0762 Gasket | ||||||
10.0750.720 | OBEX CORTEX 0750 EPDM Membrane Inc 0762 Gasket | 150mm | 0.75mm | 0762 | 20m | 1 |
10.0750.721 | OBEX CORTEX 0750 EPDM Membrane Inc 0762 Gasket | 250mm | 0.75mm | 0762 | 20m | 1 |
10.0750.722 | OBEX CORTEX 0750 EPDM Membrane Inc 0762 Gasket | 400mm | 0.75mm | 0762 | 20m | 1 |

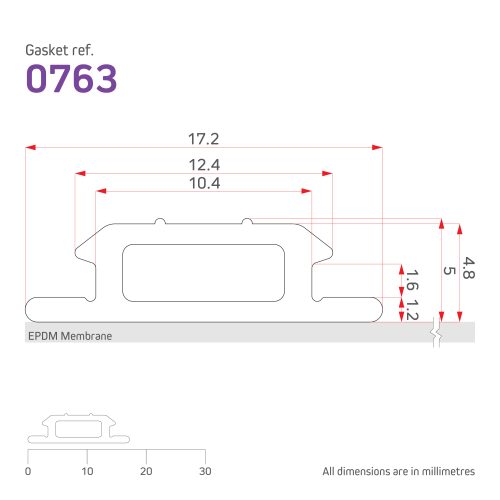

OBEX CORTEX EPDM Membrane Inc 0763 Gasket | ||||||
10.0750.724 | OBEX CORTEX 0750 EPDM Membrane Inc 0763 Gasket | 150mm | 0.75mm | 0763 | 20m | 1 |
10.0750.725 | OBEX CORTEX 0750 EPDM Membrane Inc 0763 Gasket | 200mm | 0.75mm | 0763 | 20m | 1 |
10.0750.726 | OBEX CORTEX 0750 EPDM Membrane Inc 0763 Gasket | 250mm | 0.75mm | 0763 | 20m | 1 |
10.0750.727 | OBEX CORTEX 0750 EPDM Membrane Inc 0763 Gasket | 300mm | 0.75mm | 0763 | 20m | 1 |
10.0750.728 | OBEX CORTEX 0750 EPDM Membrane Inc 0763 Gasket | 350mm | 0.75mm | 0763 | 20m | 1 |
10.0750.729 | OBEX CORTEX 0750 EPDM Membrane Inc 0763 Gasket | 400mm | 0.75mm | 0763 | 20m | 1 |
10.0750.732 | OBEX CORTEX 0750 EPDM Membrane Inc 0763 Gasket | 600mm | 0.75mm | 0763 | 20m | 1 |

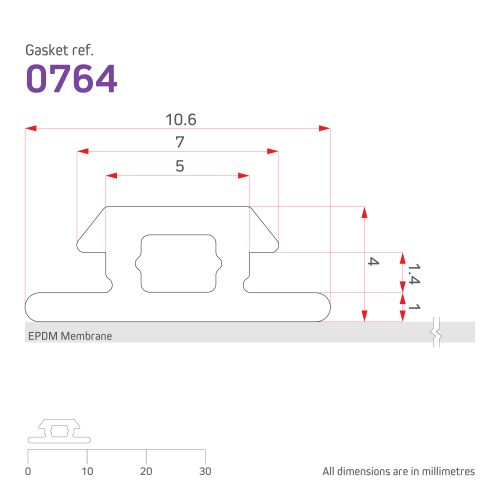

OBEX CORTEX EPDM Membrane Inc 0764 Gasket | ||||||
10.0750.734 | OBEX CORTEX 0750 EPDM Membrane Inc 0764 Gasket | 100mm | 0.75mm | 0764 | 20m | 1 |
10.0750.736 | OBEX CORTEX 0750 EPDM Membrane Inc 0764 Gasket | 150mm | 0.75mm | 0764 | 20m | 1 |
10.0750.737 | OBEX CORTEX 0750 EPDM Membrane Inc 0764 Gasket | 200mm | 0.75mm | 0764 | 20m | 1 |
10.0750.738 | OBEX CORTEX 0750 EPDM Membrane Inc 0764 Gasket | 250mm | 0.75mm | 0764 | 20m | 1 |
10.0750.739 | OBEX CORTEX 0750 EPDM Membrane Inc 0764 Gasket | 300mm | 0.75mm | 0764 | 20m | 1 |
10.0750.740 | OBEX CORTEX 0750 EPDM Membrane Inc 0764 Gasket | 350mm | 0.75mm | 0764 | 20m | 1 |
10.0750.741 | OBEX CORTEX 0750 EPDM Membrane Inc 0764 Gasket | 400mm | 0.75mm | 0764 | 20m | 1 |
10.0750.742 | OBEX CORTEX 0750 EPDM Membrane Inc 0764 Gasket | 450mm | 0.75mm | 0764 | 20m | 1 |
10.0750.743 | OBEX CORTEX 0750 EPDM Membrane Inc 0764 Gasket | 500mm | 0.75mm | 0764 | 20m | 11 |
10.0750.745 | OBEX CORTEX 0750 EPDM Membrane Inc 0764 Gasket | 600mm | 0.75mm | 0764 | 20m | 1 |
10.0750.747 | OBEX CORTEX 0750 EPDM Membrane Inc 0764 Gasket | 700mm | 0.75mm | 0764 | 20m | 1 |
OBEX CORTEX EPDM Membrane Inc 0768 Gasket | ||||||
10.0750.753 | OBEX CORTEX 0750 EPDM Membrane Inc 0768 Gasket | 100mm | 0.75mm | 0768 | 20m | 1 |
10.0750.754 | OBEX CORTEX 0750 EPDM Membrane Inc 0768 Gasket | 150mm | 0.75mm | 0768 | 20m | 1 |
10.0750.755 | OBEX CORTEX 0750 EPDM Membrane Inc 0768 Gasket | 200mm | 0.75mm | 0768 | 20m | 1 |
10.0750.756 | OBEX CORTEX 0750 EPDM Membrane Inc 0768 Gasket | 250mm | 0.75mm | 0768 | 20m | 1 |
10.0750.757 | OBEX CORTEX 0750 EPDM Membrane Inc 0768 Gasket | 300mm | 0.75mm | 0768 | 20m | 1 |
10.0750.758 | OBEX CORTEX 0750 EPDM Membrane Inc 0768 Gasket | 350mm | 0.75mm | 0768 | 20m | 1 |
10.0750.759 | OBEX CORTEX 0750 EPDM Membrane Inc 0768 Gasket | 400mm | 0.75mm | 0768 | 20m | 1 |
10.0750.760 | OBEX CORTEX 0750 EPDM Membrane Inc 0768 Gasket | 450mm | 0.75mm | 0768 | 20m | 1 |
10.0750.761 | OBEX CORTEX 0750 EPDM Membrane Inc 0768 Gasket | 500mm | 0.75mm | 0768 | 20m | 1 |
10.0750.763 | OBEX CORTEX 0750 EPDM Membrane Inc 0768 Gasket | 600mm | 0.75mm | 0768 | 20m | 1 |
10.0750.765 | OBEX CORTEX 0750 EPDM Membrane Inc 0768 Gasket | 700mm | 0.75mm | 0768 | 20m | 1 |
