0901
External Pre-Moulded Corner
Class E - EN 13501-1
A 100% weathertight seal at window corner locations in conjunction with OBEX CORTEX interface membranes. Read more
Downloads
OBEX CORTEX 0901 EPDM Corner
Product Description

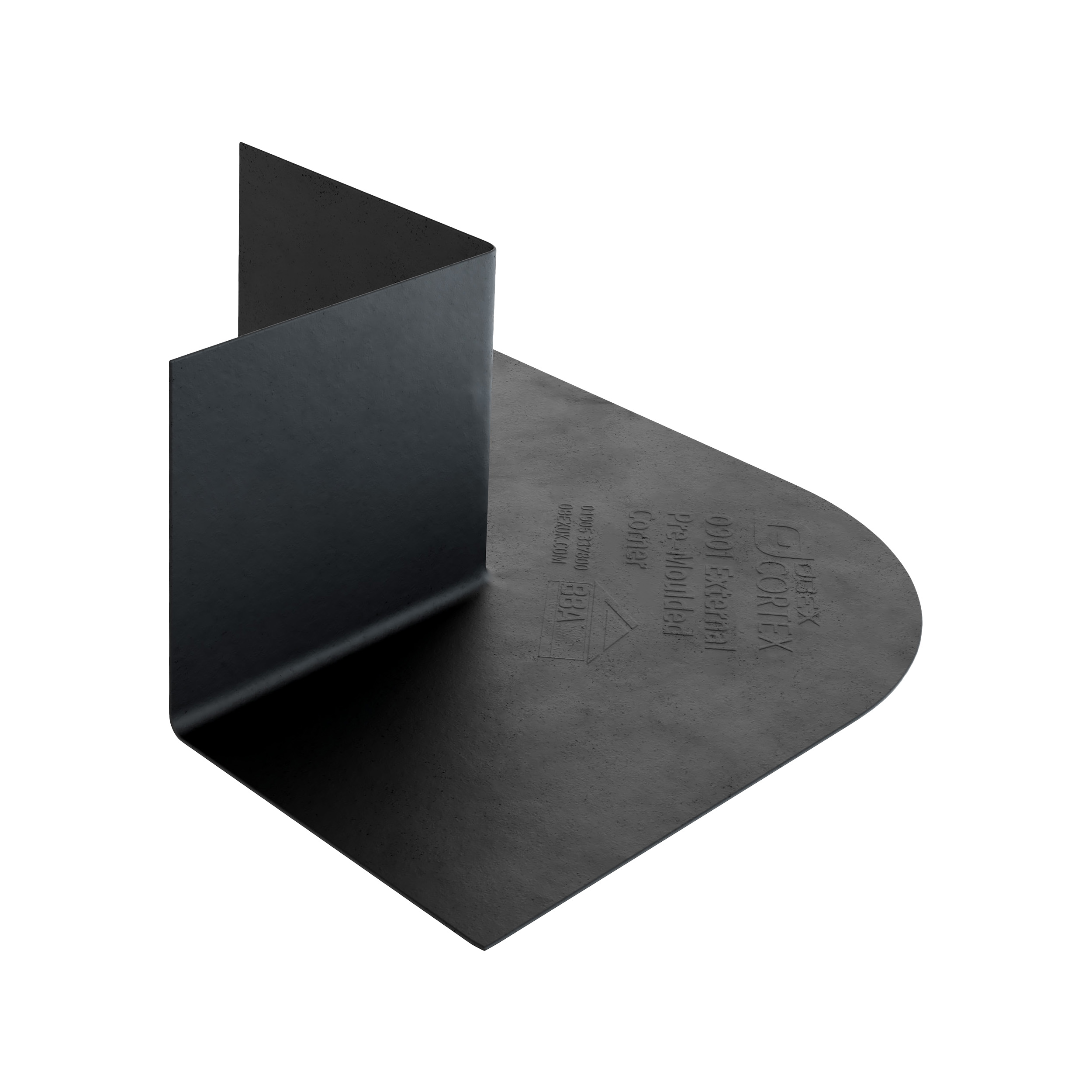

OBEX CORTEX 0901 External Pre-Moulded Corner provides a 100% weathertight seal at window corner locations in conjunction with OBEX CORTEX interface membranes.

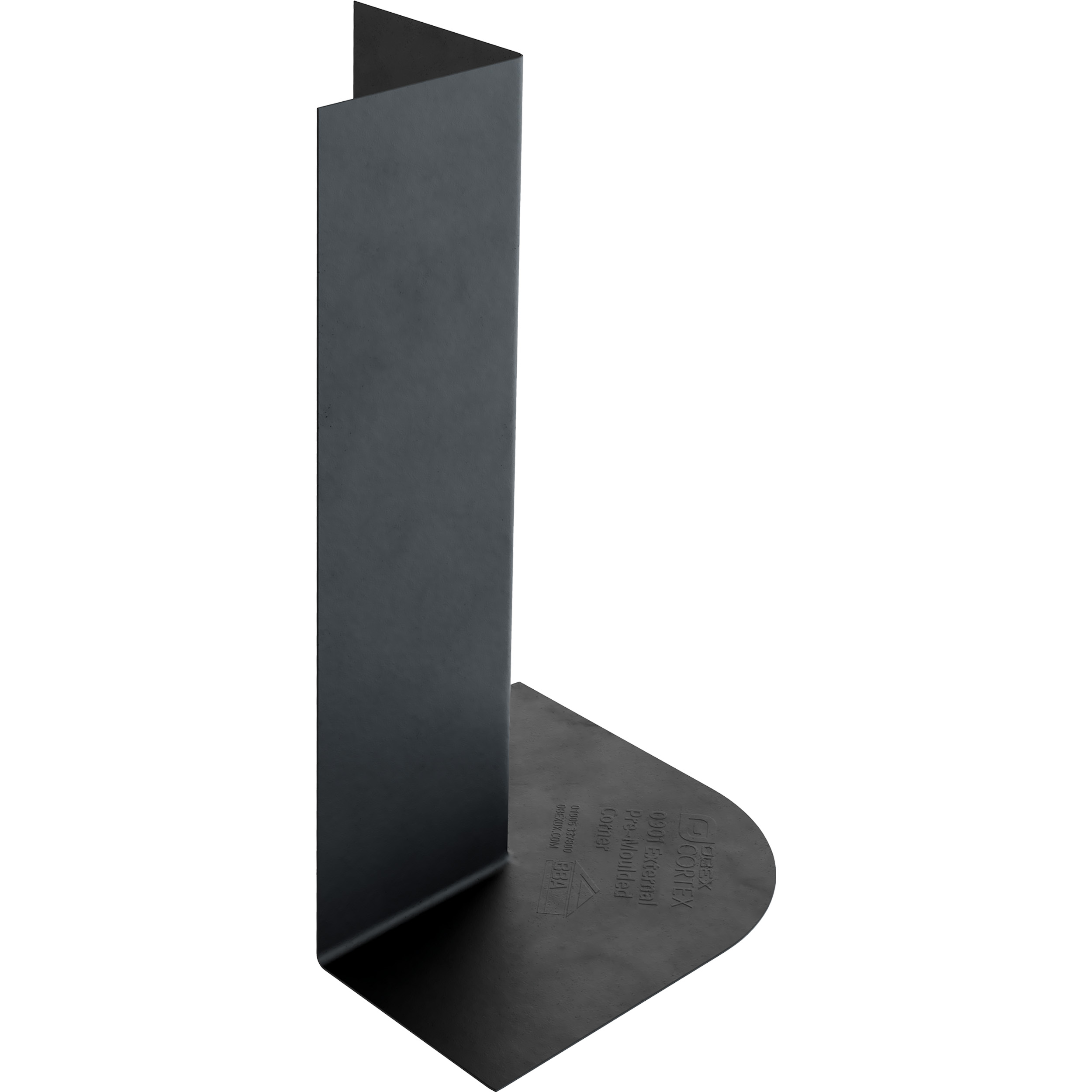

OBEX CORTEX 0901 External Corners are available in 100mm and 300mm options, but can easily be cut down to suit your window projections.
Product Specs
Size
100mm or 300mm
Box Quantity
40
Colour
Black
Technical Specs
Colour
Black
Hardness (IRHD) | 60-70
65
Tensile strength (Mpa) | 10-15
11
Elongation at break (%) | 300-500
450
Compression set (%) 24hrs at 70°C | 20-50
25
Tear strength (kg/cm) | 10-20
11
Heat aged 70hrs at 70°C
Hardness change (IRHD) | +10 max
+3
Change in tensile strength (%) ° -20 max
-5
Change in elongation at break (%) | -35 max
-5
Product Order Codes
| Product Codes | Product Description | Size | Projection | Box Quantity |
|---|---|---|---|---|
| 10.0901.002 | OBEX CORTEX 0901 EPDM Preformed External Corner | 195mm x 195mm | 100mm | 40 |
| 10.0901.001 | OBEX CORTEX 0901 EPDM Preformed External Corner | 195mm x 195mm | 300mm | 40 |
