0901FR
External Pre-Moulded Corner
The perfect solution for those in search of a reliable, fire-rated alternative to traditional EPDM pre-moulded corners. Our product is specifically designed to provide a 100% watertight seal to the corners of projected windows, ensuring that your building stays protected from the elements. Read more
-
3rd Party Certified
Downloads
OBEX CORTEX 0500FR ISM Class B & 0901FR Pre-Moulded Corners Installation Guide
Product Description

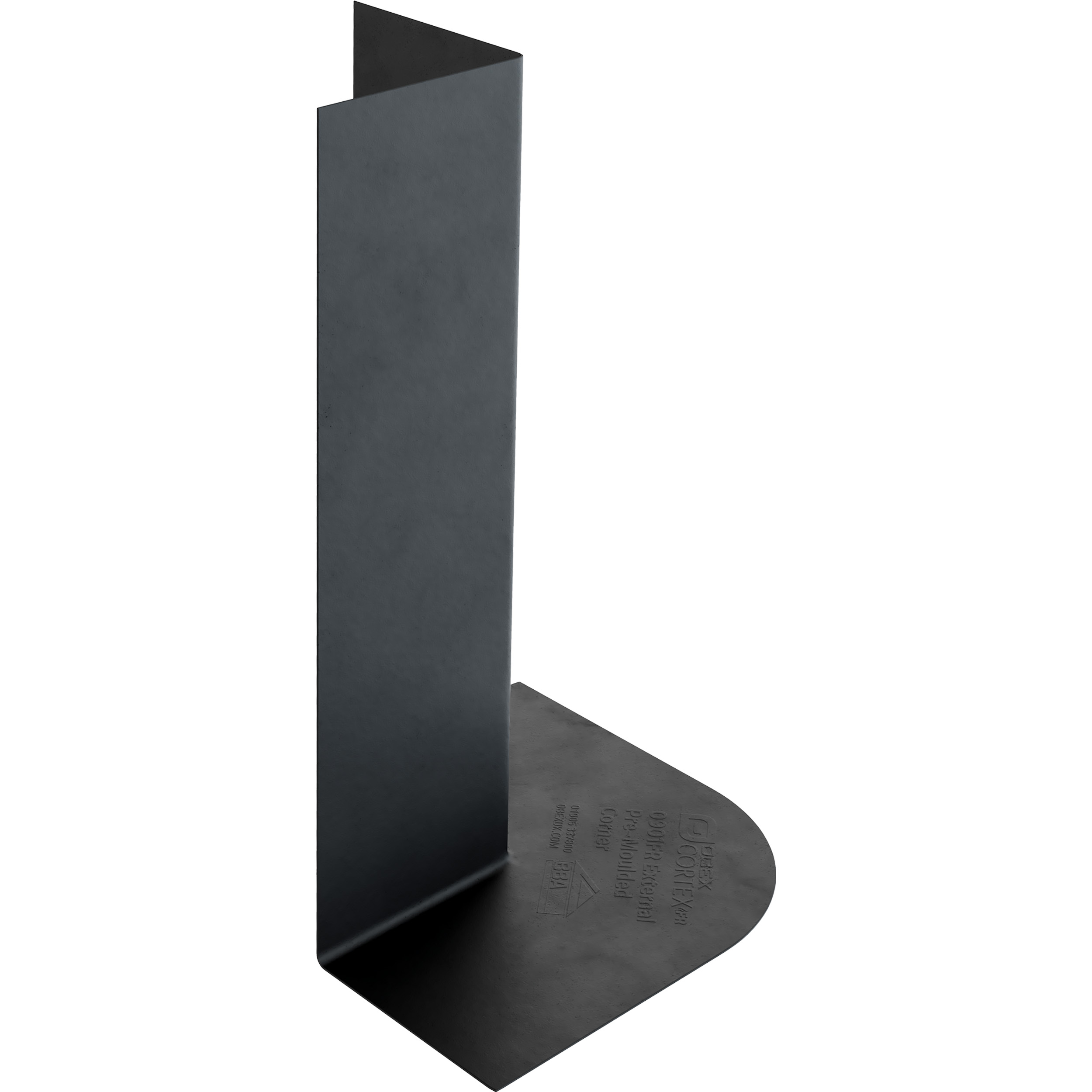

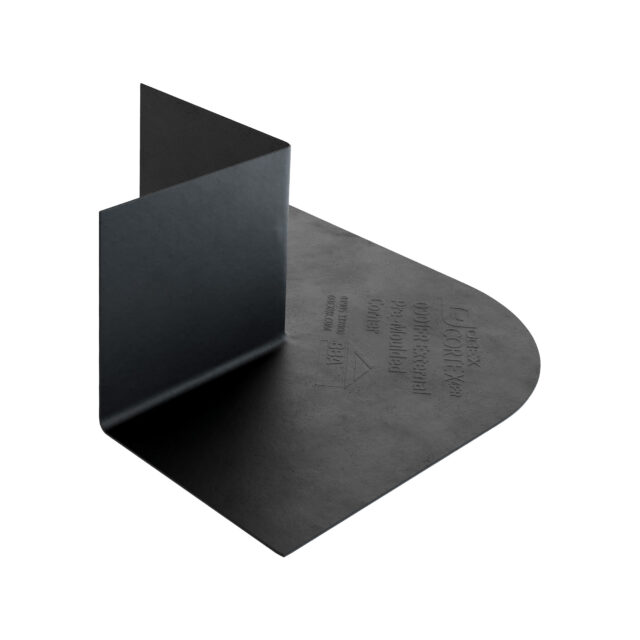

OBEX CORTEX 0901FR External Pre-Moulded Corners – the perfect solution for those in search of a reliable, fire-rated alternative to traditional EPDM pre-moulded corners. Our product is specifically designed to provide a 100% watertight seal to the corners of projected windows, ensuring that your building stays protected from the elements.
One of the key benefits of our External Pre-Moulded Corners is their ease of use. Our product can be easily trimmed to suit your window projection, making installation a breeze, plus, we manufacture our External Pre-Moulded Corners in either 100mm or 300mm depth to suit your window projection, ensuring a perfect fit every time.
Our External Pre-Moulded Corners are manufactured from black, flammability class V-0 rated material and offer reduced installation times when compared to traditional methods, saving you time and money on your project.
Typical Uses
-
- Provides a 100% weathertight seal to the corners of projected windows.
Product Specs
Flammability Class
V-0
Colour
Black
Box Quantity
40
Technical Specs
Flammability class
V-0
Tensile strength (Mpa) | 10-15
11
Compression set (%) 24hrs at 70°C | 20-50
25
Heat aged 70hrs at 70°C
Change in tensile strength (%) | -20 max
-5
Hardness (IRHD) | 60-70
Hardness (IRHD) | 60-70
Elongation at break (%) | 300-500
450
Tear strength (kg/cm) | 10-20
11
Hardness change (IRHD) | +10 max
+3
Change in elongation at break (%) | -35 max
-5
Product Order Codes
| Product Codes | Product Description | Depth | Box Quantity |
|---|---|---|---|
| 20.0901.001 | OBEX CORTEX 0901FR Preformed External Corner | 100mm | 40 |
| 20.0901.002 | OBEX CORTEX 0901FR Preformed External Corner | 300mm | 40 |
