EPDM Membrane With Butyl
Class E – EN 13501-1
A fully flexible membrane used to create weather and airtight seals around openings such as windows, doors and curtain walling on non-relevant buildings. Read more
-
3rd Party Certified
-
EN 1928 - EN 13984
Product Description

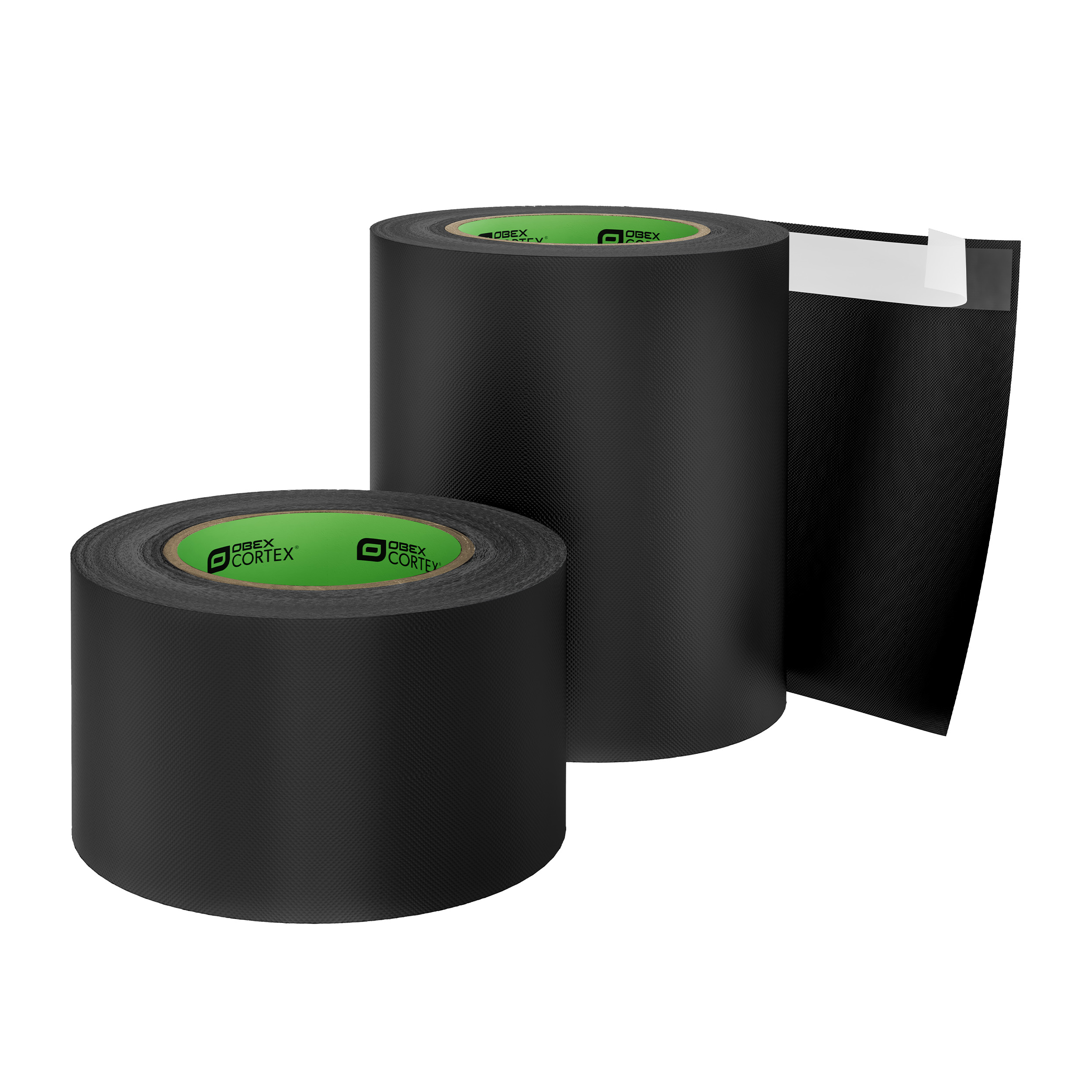

OBEX CORTEX EPDM Membrane With Butyl is a fully flexible membrane used to create weather and airtight seals around openings such as windows, doors and curtain walling on non-relevant buildings.
The membrane is manufactured with pre-attached butyl strips which enable the membrane to be bonded directly onto the window frame.
The EPDM can be supplied with a single butyl strip to one edge (0751), or one strip to each edge on the same side (0752), or one strip to each edge on opposite sides (0753).
Refer to the TDS sheet for more information.
Typical Uses
- Creating a weather and airtight seal around openings on non-relevant buildings
Product Specs
Widths
50mm - 500mm
Length
20m
Thicknesses
0.75mm (Other thicknesses available on request)
Technical Specs
3rd Party Approved
BBA Approval – No. 17/5396
Watertightness | EN 1928
Pass – 2 kPa for 24 hours
Tensile Strength | EN 12311-2
≥7MPa
Water Vapour Permeability | EN 1931
50,000µ
Vapour resistance | EN 1931
188 MNs/g
Vapour resistivity | EN 1931
25,000 MNs/g
Service temperature (approx)
-45°C to 130°C
Fire Classification | EN 13501-1
E
Air Tightness | EN 12114
<0.1m³
resistance to tearing (nail shank | EN 12310-2
≥ 10N
Equivalent air layer thickness (Sd value) | EN 1931
37.5m
Elongation at break (both directions) | EN 12311-2
≥ 300%
Durability against ageing | EN 1296/EN 1931
Pass
Adhesion
>19 N/cm
Product Order Codes
| Product Codes | Product Description | Width | Thickness | No. of Butyl Strips | Length | Box Quantity |
|---|---|---|---|---|---|---|
| OBEX CORTEX 0750 EPDM Membrane With Single Butyl Strip | ||||||
| 10.0750.201 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 1 Butyl Strip | 100mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.203 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 1 Butyl Strip | 150mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.204 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 1 Butyl Strip | 200mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.205 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 1 Butyl Strip | 250mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.206 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 1 Butyl Strip | 300mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.207 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 1 Butyl Strip | 350mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.208 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 1 Butyl Strip | 400mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.209 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 1 Butyl Strip | 450mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.210 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 1 Butyl Strip | 500mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.211 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 1 Butyl Strip | 600mm | 0.75mm | 1 | 20m | 1 |
| OBEX CORTEX 0750 EPDM Membrane With 2 Butyl Strips Same Sides | ||||||
| 10.0750.214 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips S/S | 100mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.215 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips S/S | 150mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.216 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips S/S | 200mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.217 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips S/S | 250mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.218 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips S/S | 300mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.219 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips S/S | 400mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.221 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips S/S | 500mm | 0.75mm | 2 | 20m | 1 |
| OBEX CORTEX 0750 EPDM Membrane With 2 Butyl Strip Opposite Sides | ||||||
| 10.0750.235 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips O/S | 100mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.225 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips O/S | 125mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.234 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips O/S | 150mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.227 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips O/S | 200mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.228 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips O/S | 250mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.229 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips O/S | 300mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.230 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips O/S | 350mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.231 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips O/S | 400mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.233 | OBEX CORTEX 0.75mm EPDM Membrane – Class E Inc 2 Butyl Strips O/S | 500mm | 0.75mm | 2 | 20m | 1 |
