0220FR
Breather Membrane
W2
Class A - EN 13501-1
A Breather Membrane that features water resistant yet breathable technology, which facilitates the escape of moisture and the prevention of condensation within the external wall construction. It can be applied to many surfaces including sheathing board, concrete and insulation. Read more
-
3rd Party Certified
-
12 Months Exposure
-
Class A
-
Breathable
-
W2 - EN 13859-2
Downloads
OBEX CORTEX 0220FR Breather Membrane Installation Guide
Product Description

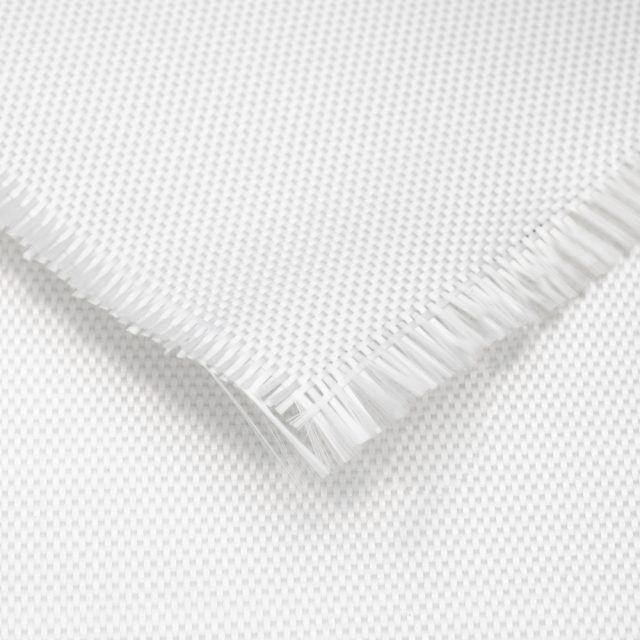

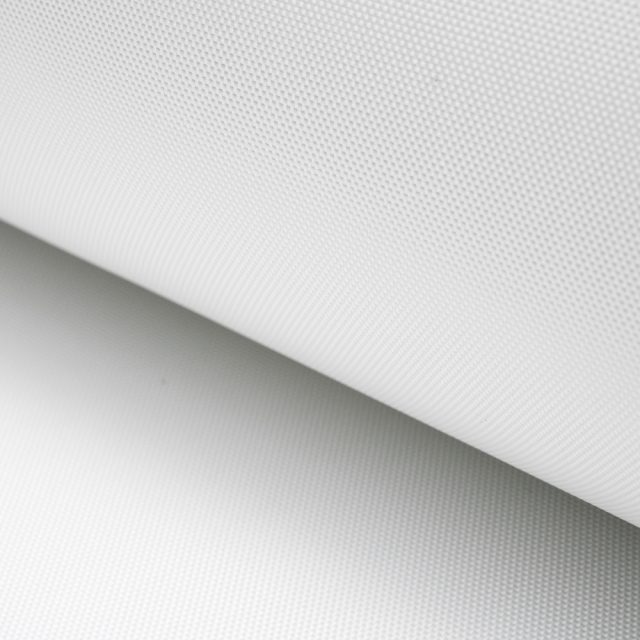

OBEX CORTEX 0220FR Class A1 Breather Membrane features water resistant yet breathable technology, which facilitates the escape of moisture and the prevention of condensation within the external wall construction. It can be applied to many surfaces including sheathing board, concrete and insulation.
This Breather Membrane achieves A1 fire-classification when tested to EN 13859-2, the highest fire classification available.
The membrane is installed using the OBEX CORTEX 0825 Installation Kit which includes 2 rolls of 0824FR Double-Sided Tape and 6 rolls of single sided 0823FR UV Façade Tape.
Typical Uses
- In façade construction behind cladding systems, ensuring water does not penetrate into the structure.
- Behind external masonry or curtain walling, to safeguard the primary waterproofing from wind-driven rain and to allow moisture from inside to escape.
Product Specs
Width
1500mm
Length
50m
Thickness
0.2mm
Colour
White
Technical Specs
Harmonised Standard
EN 13859-2
Fire Classification | EN 13501-1
A1
Watertightness | EN 13111
W2
Sd value | EN ISO 12572
0.03m
Tensile Strength | EN 12311-2
Longitudinal – 3828 N/50mm, Transversal - 1992 N/50mm
3rd Party Approved
KIWA Approval – BAW-22-244-P-A-UK
UV Resistance
12 Months UV Resistance
Product Order Codes
| Product Codes | Product Description | Width | Length | Box Quantity |
|---|---|---|---|---|
| 20.0220.012 | OBEX CORTEX 0220FR Breather Membrane (White) - Class A1 / W2 | 1500mm | 50m | 1 |
